Features
Dual Lens to Unveil the Unseen:

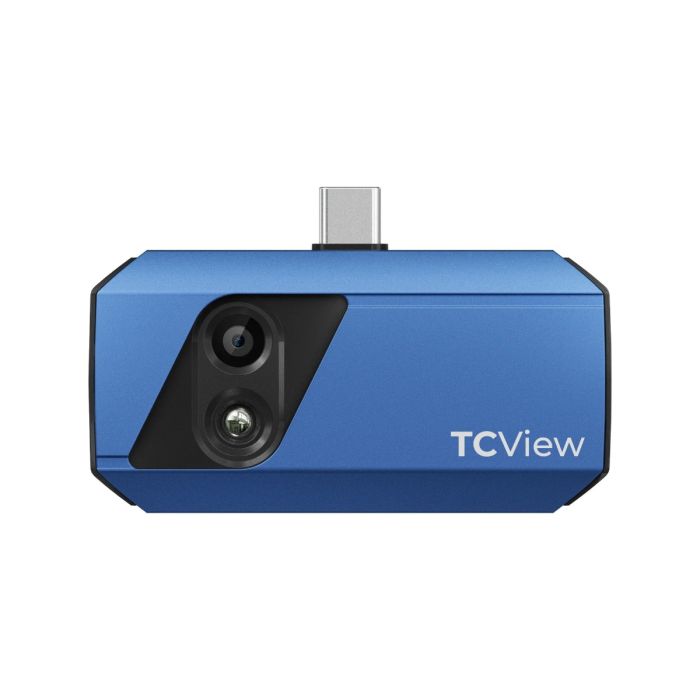

TC001 Plus comes equipped with a 100W visible light lens and an infrared lens, along with the image fusion technology to capture targets in original colors and reveal their contours, eliminating any trace of fuzziness.
Pipelines, circuits, vehicle engines, floor heating systems, and even objects with subtle temperature variations are effortlessly outlined.
Enhanced Image Quality:
Sporting an ultra-high IR camera resolution of 256x192 pixels, TC001 Plus delivers crystal-clear thermal images for precise problem identification. Its 25Hz refresh rate ensures smooth, non-lagging image display, making it easier to identify and analyze details of the targets.
Extensive & Accurate Temperature Measurement:
With a temperature range from -4°F to 1022°F (-20°C to 550°C), TC001 Plus delivers precise temperature readings at 3.6°F (2°C) or 2% of the actual temperature and a temperature measurement resolution of 0.1°F (0.1°C).
It also boasts continuous measurement capabilities, generating waveform graphs for intuitive monitoring and facilitating detailed analysis of temperature variations.
Portable & Durable:
Its sleek and rugged design enables you to tackle thermal tasks with ease wherever your adventures take you. Compact and lightweight, it measures just 2.8x1.65x0.55 inches and weighs a mere 1 ounce (30 grams). Built to withstand drops of up to 1m, it guarantees reliability in any scenario.
Various Applications:
Electrical Inspectors
House Inspectors
HVAC Inspectors
Auto Mechanics
Engineers
Building Inspectors
More Advanced Features with Thermal Imaging Software:
Experience seamless temperature detection and data analysis with the TCView desktop software and TopInfrared app. Get detailed reports and recordings for each image, export pixel temperature charts, and set temperature alarms for quick identification.
Specifications
Lens: 100W Visible Light & IR Lenses
IR Resolution: 256 x 192
NETD: ＜40mK
Frame Rate: 25Hz
Object Temperature Range: -4°F to 1022°F (-20°C to 550°C)
Accuracy: ±2°C or ±2% of reading
Temperature Resolution: down to 0.1°C (0.1°F)
Operating Systems: Compatible with Android Phones/Tablets & Windows Laptops
Weight: 30g
Dimensions: 140*102*46mm (2.8*1.65*0.55 inch)
Note: TC001 Plus is not compatible with the following models: Samsung SM-A520F, Samsung SM-A546E, Samsung SM-M546B, Realme RMX3760, Xiaomi MI 8 lite-8.1, and Motorola XT2071-4.
Packing List
TC001 Plus Thermal Imaging Camera
50cm Multifunctional Extension Cable
Carrying Bag
EVA Carrying Bag
Cleaning Cloth
Quick User Guide
